Industrial IoT
Power Failure SMS Alert Device

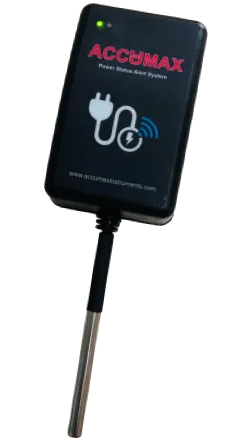

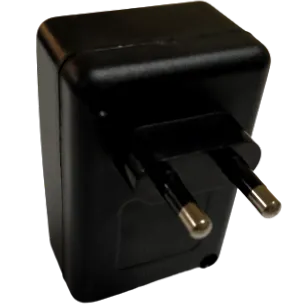

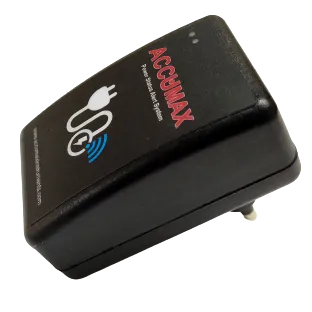

The Accumax Power Failure SMS Alert Device is a GSM-based short message and missed call notification system that reports power outage and restoration to up to five mobile numbers, replacing manual monitoring of equipment.
How it works
A GSM-based notification system monitors power status and, on a power outage or restoration, sends a short message and a missed call to the registered mobile numbers so the recipient can take prompt action. In the temperature-alert variant it also monitors temperature and signals rise and restore events against a cutoff setting. LED indicators give visual feedback while an alert message is being transmitted, and the device is configured and interrogated by SMS command.
Features
-
SMS and missed call notifications
Real-time alerts by SMS and missed call to up to 5 mobile numbers.
-
Power On/Off alert
Notifies on power status changes - outage and restoration.
-
Temperature rise/restore alert
Available on the 'with temperature alert' variant, to monitor temperature fluctuations for preventive action.
-
Two variants
With temperature alert (prevents overheating issues) or without temperature alert (standard power monitoring only).
-
LED indication
Instant visual feedback via LED indicators during alert message transmission.
-
SMS command functionality
Access all parameters' data and modify the cutoff temperature setting or register mobile numbers through simple SMS commands.
-
Customisation
Source states the product can be tailored to specific customer requirements.
-
Datasheet and manual available
The page links a Power Failure Alert Device datasheet PDF and a manual PDF, plus a product video.
Technical specifications
41 values · 8 groups
These values are transcribed from the manufacturer's datasheet and are pending engineering sign-off. Confirm critical figures with Accumax before specifying.
| Electrical / Power supply | |
|---|---|
| Phase | Single |
| Operating Voltage Range | 100 to 240 V AC |
| Operating voltage range (datasheet revision) | 90 to 270 V AC |
| Battery Backup | Chargeable 3.7 VDC 1100 mAh Li-Ion |
| Battery backup (datasheet revision) | Chargeable 3.7 VDC 750 mAh Li-Ion |
| Battery Standby Time (datasheet revision) | 8 hours |
| Communication / Module | |
| Module | GSM Module |
| SIM Card | Micro SIM (VI, Airtel, BSNL) |
| Frequency Bands | Quad band: GSM 850, EGSM 900, DCS 1800, PCS 1900 |
| GSM Modes | multi-slot class 12/class 1-10 (optional) |
| Alert message specification | |
| Alert channels | Power on/off alert over SMS and missed call notification |
| Alert notification content | Cellular message alert notifications with date and time |
| Number of recipients | Message alert configurable for 1 to 5 Contacts |
| Contact number format | 10 digit mobile contact numbers are supportable |
| Message Alerts | POWER on with Date and Time Stamp; POWER off with Date and Time Stamp |
| Message Configuration | Simple and easily configurable |
| LED indication | |
| LED Indications | Power - green; GSM - Red |
| LED Indication Pattern | 64 ms ON/ 800 ms OFF for Not Registered Network; 64 ms ON/ 3000 ms OFF for Registered to Network |
| Red LED - fast blink | Network not available |
| Red LED - slow blink | Network available |
| Green LED - continuous ON | Power available |
| Green LED - continuous OFF | Power not available |
| LED - blink | While sending message |
| Mechanical / Physical dimensions | |
| Housing | Plastic |
| Dimension | 83 x 71 x 63mm |
| Weight | 130gm |
| Dimension (datasheet revision) | 72 x 46 x 30mm |
| Weight (datasheet revision) | 60gm |
| Environmental | |
| Humidity | 5% - 95% (non-condensing) |
| Configuration & operation | |
| Recipient mobile numbers | the user can input up to 5 mobile numbers to receive alerts |
| Default password | 12345 |
| Password length | Password should be 5 digits only |
| Device modes default state | By default, both modes are activated |
| Manual status check | User can check live status by sending an SMS/Missed call to the device |
| Power status request command | GETDATA |
| Device information command | Getinfo |
| SMS mode command | PasswordSMSON / PasswordSMSOFF |
| Missed call mode command | PasswordCALLON / PasswordCALLOFF |
| SMS command case handling | All SMS commands are case sensitive |
| Package Contents | Power failure Alert device; User Manual; SIM card (not included) |
| Warranty | |
| Warranty period | within 12 months from the date of acceptance |
Sources: POWER_ALERT_MANUAL, Power_Failure_Alert_Device_Datasheet, Power_Failure_Alert_Device_Manual
7 further specification s are listed in the datasheet but not reproduced here
These labels appear in the datasheet, but the value beside them could not be read reliably from the document. Rather than print a figure we cannot stand behind, we have left them out — ask us and we will confirm them directly.
- Battery Standby Time — the row exists in both v5.0 manuals but its value reads only "hours" (number lost by the text layer)
- Storage Temperature — label present in all three PDFs, value blank in every one
- Operating Temperature — label present in all three PDFs, value blank in every one
- Humidity lower bound in the two manuals — the row reads "95% (non condensing)", the lower limit is missing
- Warranty month count in POWER_ALERT_MANUAL — that sentence is in an encoded subset font and the number did not survive
- LED Indicators figure/table in section 2.4 of both manuals is preceded by a heading with no accompanying image text
- SMS command example screenshots throughout both manuals (sections 3.1–4.4) — the "SMS Example" captions survive but the example content did not
Applications
- Intensive Care Unit (ICU) - safeguard critical medical equipment and ensure stable power supply, with immediate alerts for power fluctuations
- Food industry / cold storage - maintain optimal temperature conditions to preserve food quality, with temperature alerts to prevent spoilage
- Server rooms and data centres / IT infrastructure - ensure continuous power availability, with power on/off and temperature alerts to prevent equipment damage
- Aquarium - maintain a stable environment for aquatic life by monitoring power supply, with temperature alerts against fluctuations
- Automation industries - keep automated manufacturing and production systems running, with power and temperature alerts to prevent downtime and machinery damage
Frequently asked questions
How many people can be notified when the power fails?
Up to 5 mobile numbers receive the alerts.
How does the device notify me - SMS only?
It sends both an SMS and a missed call. LED indicators give instant visual feedback while the alert message is being transmitted.
Do I get an alert when power comes back, or only when it goes off?
Both. It is a notification system for power outage and restoration, and gives a Power On/Off alert so you stay informed about power status changes.
Does it monitor temperature as well as power?
It is offered in two versions. The version with temperature alert gives temperature rise and restore alerts to prevent overheating issues; the version without is for standard power monitoring with no temperature-specific notifications.
Can I change the settings without visiting the site?
Yes. Simple SMS commands let you access all parameters' data and modify the cutoff temperature setting or register mobile numbers.
Where is this device typically used?
Accumax lists intensive care units, food industry and cold storage, server rooms, aquariums and automation industries.
